ROLLER ROOM ATM 1600kg

Need More Space Without the Cost and Disruption of Building?

Create the extra room you need without taking on a costly and time-consuming building project.

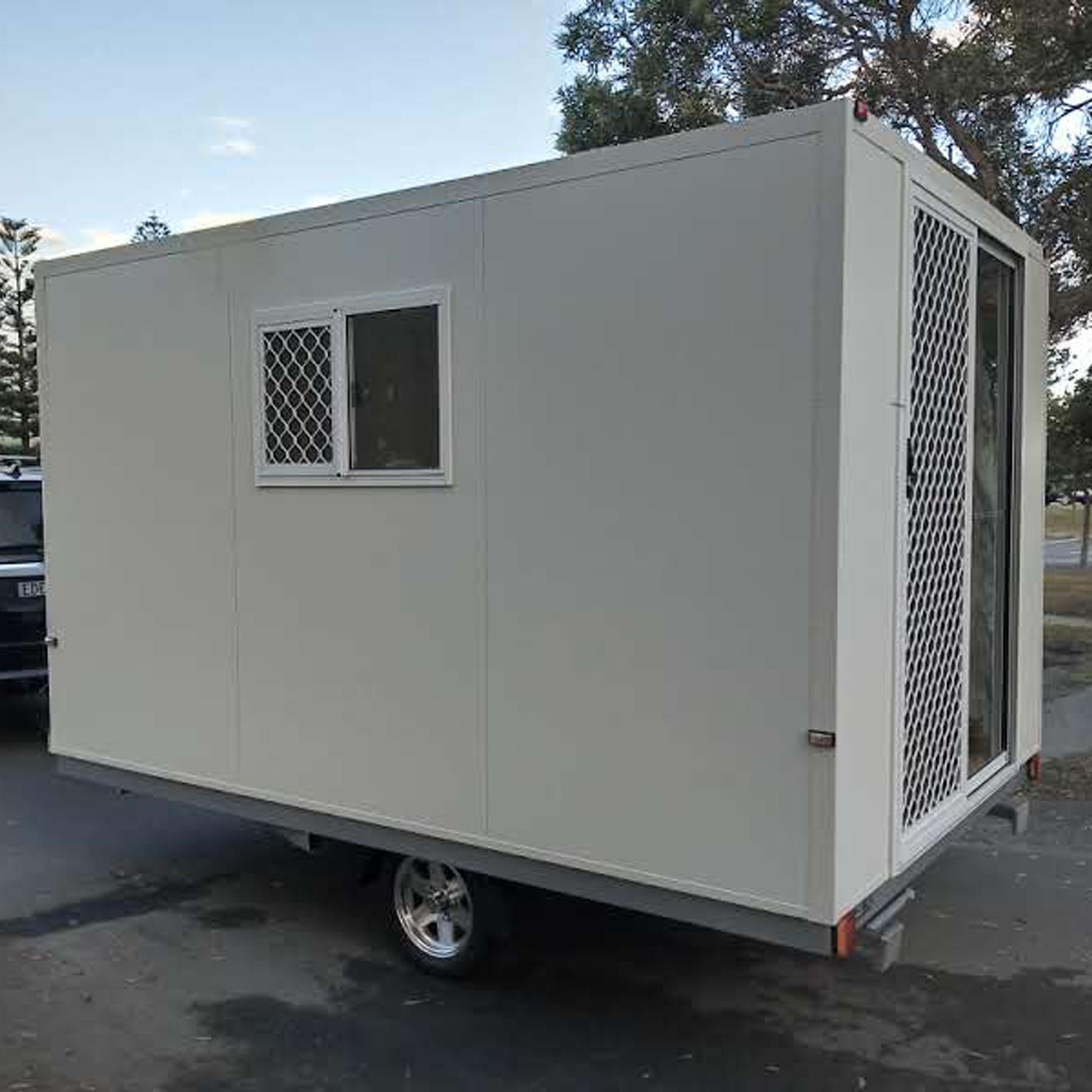

Australian-made Roller Rooms are portable rooms on wheels, providing a practical and flexible space that can be relocated whenever your needs change.

Use your Roller Room as an extra bedroom, home office, study, hobby room, temporary workspace or secure storage area. Simply tow it to a suitable location, position it and connect it to an appropriate 15-amp power supply.

Unlike conventional portable buildings, a Roller Room does not require a tilt-tray or tow truck every time it needs to be relocated. As a road-registered trailer, it can be towed by a suitable vehicle with the required towing capacity, towbar and electric-brake controller.

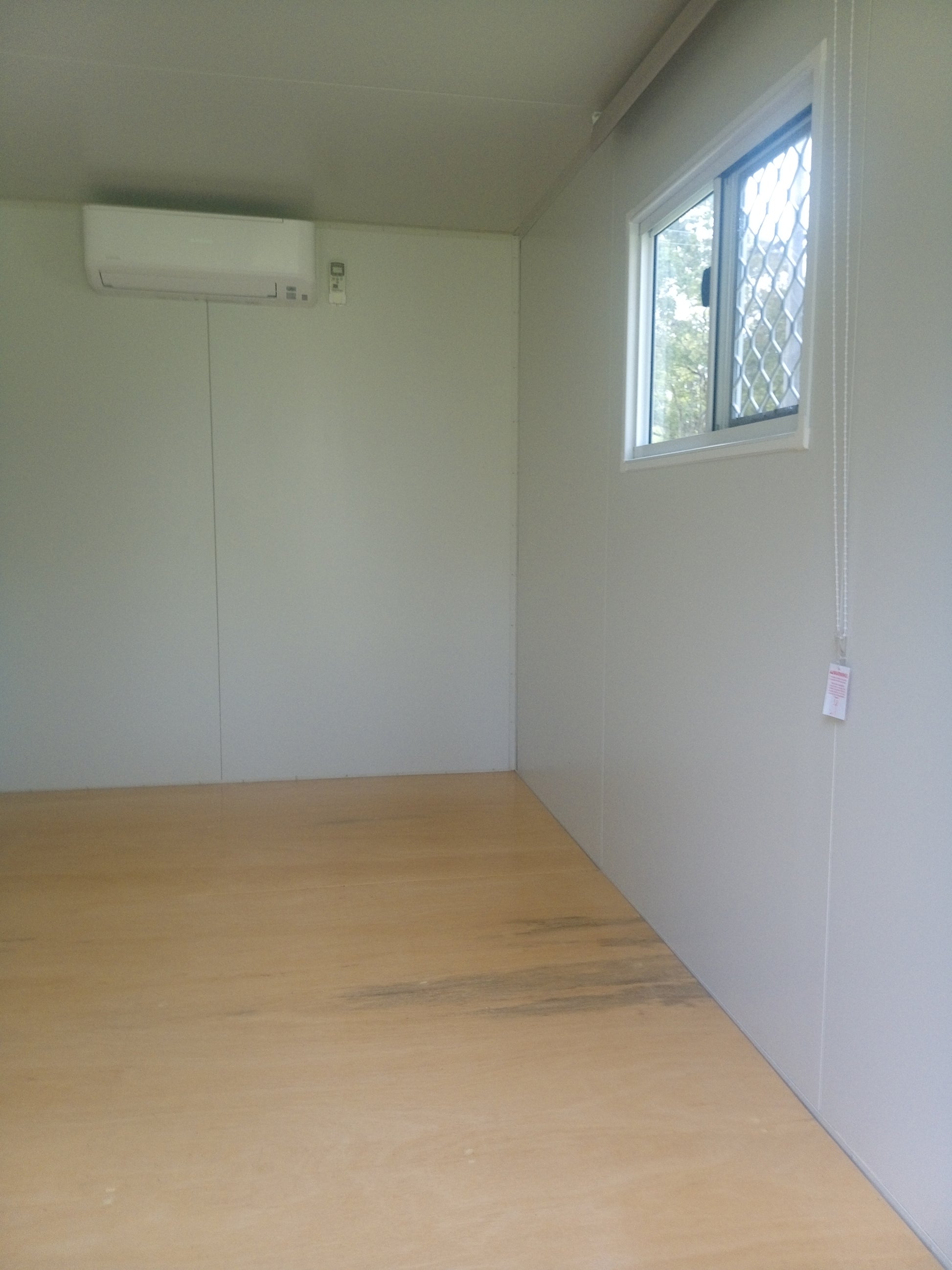

Inside, you’ll find an impressive open space measuring approximately 3,550 mm long, 2,340 mm wide and 2,100 mm high—giving you plenty of room for beds, wardrobes, desks, shelving and workbenches.

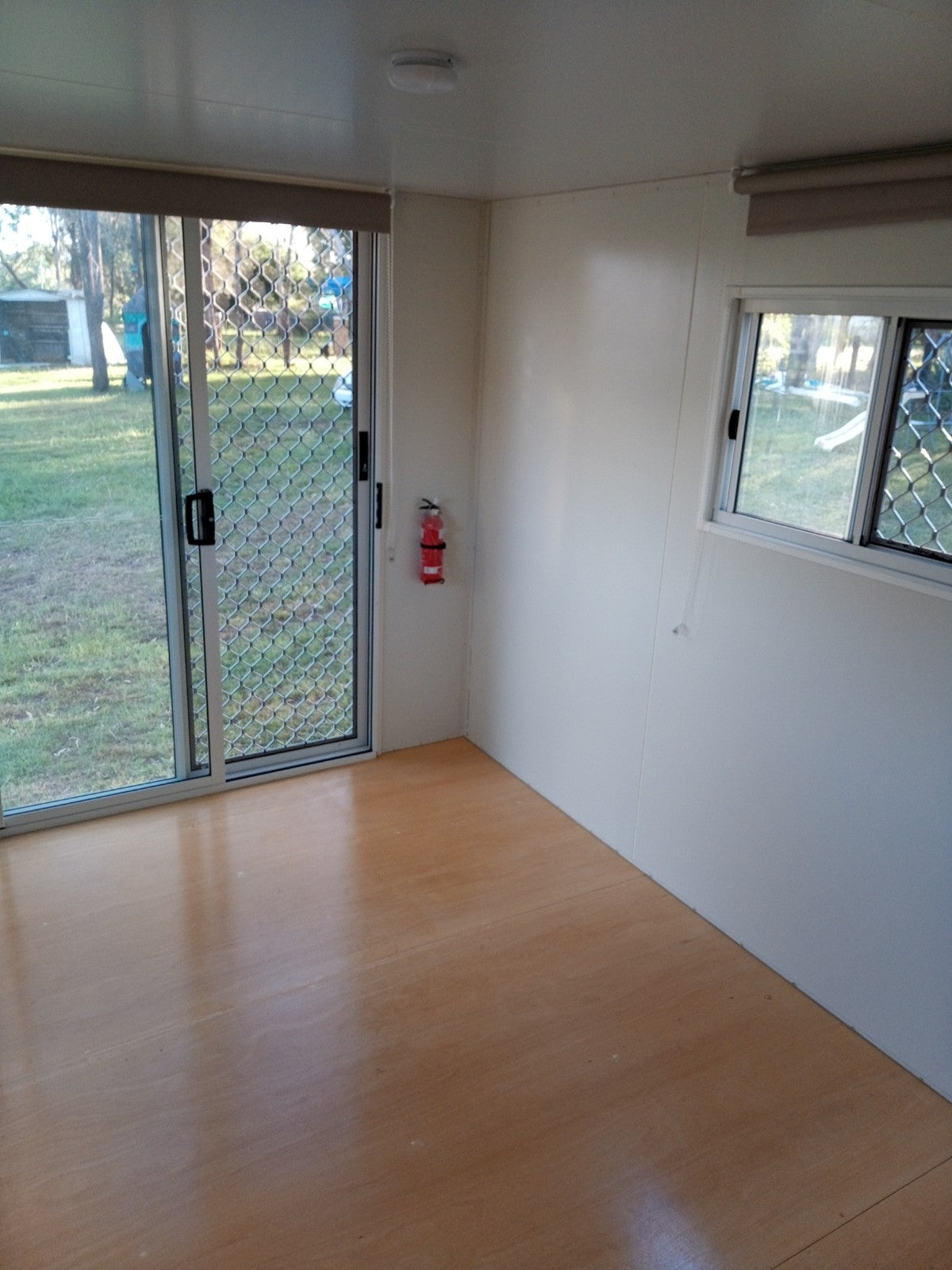

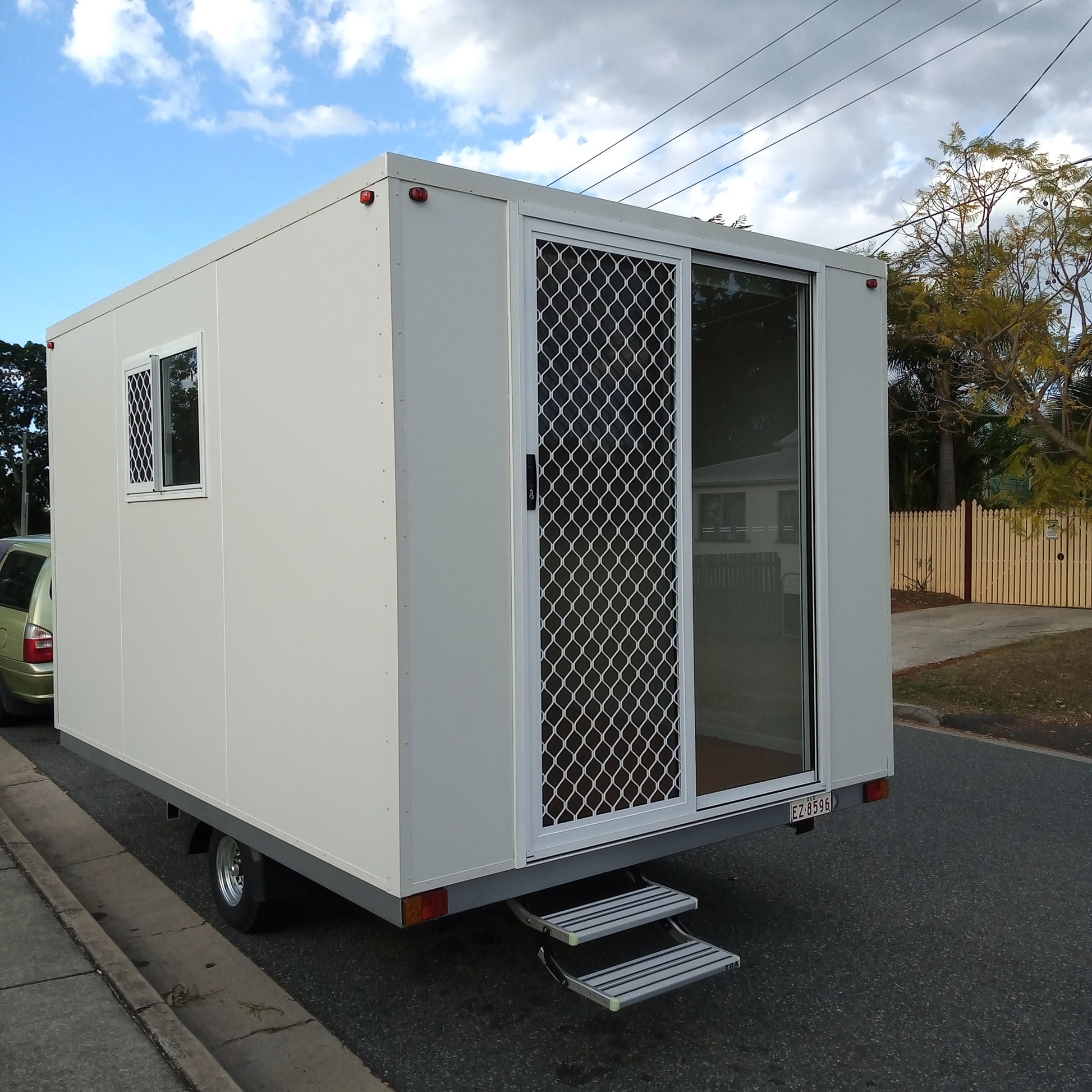

A wide G.James aluminium sliding door provides easy access for furniture and equipment, avoiding the narrow entry commonly found on conventional caravans and RVs.

The insulated construction, reverse-cycle air conditioning, security screens and blackout roller blinds help create a comfortable and practical space throughout the year.

Position your Roller Room beside your home, in the backyard, down the driveway, at a workplace or at an approved holiday park or accommodation site.

When your circumstances change, your room can move with you.

Contact Roller Room today to discuss your requirements and discover how easily you can create the additional space you need.

Dimensions and Weights

• Total length from drawbar to tail lights: approximately 5,410 mm
• External body dimensions: approximately 3,650 mm L × 2,490 mm W × 2,750 mm H from ground level
• Internal dimensions: approximately 3,550 mm L × 2,340 mm W × 2,100 mm H
• Aggregate Trailer Mass (ATM): 1,600 kg
• Tare mass: approximately 900 kg
• Maximum payload: approximately 700 kg

Payload is calculated as ATM less tare mass. The actual tare and available payload must be confirmed from the individual trailer’s compliance documentation and weighbridge certificate. Towball download forms part of the ATM.

Features and Specifications

• Australian made
• Quality construction using premium components
• Open-plan interior suitable for a wide range of uses
• Fully insulated 50 mm EPS panel body
• Strong roof construction
• F17 17 mm hardwood structural plywood flooring

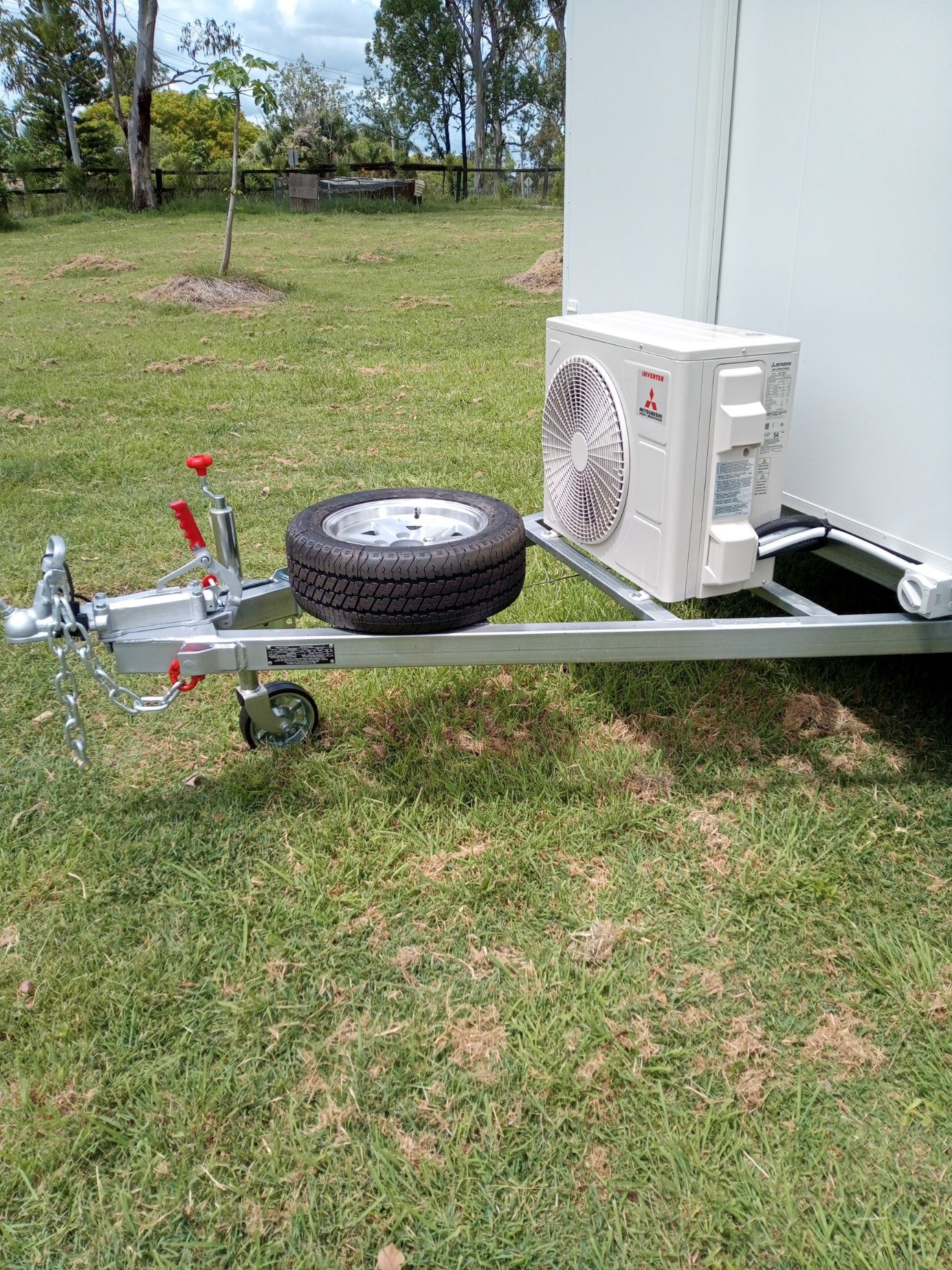

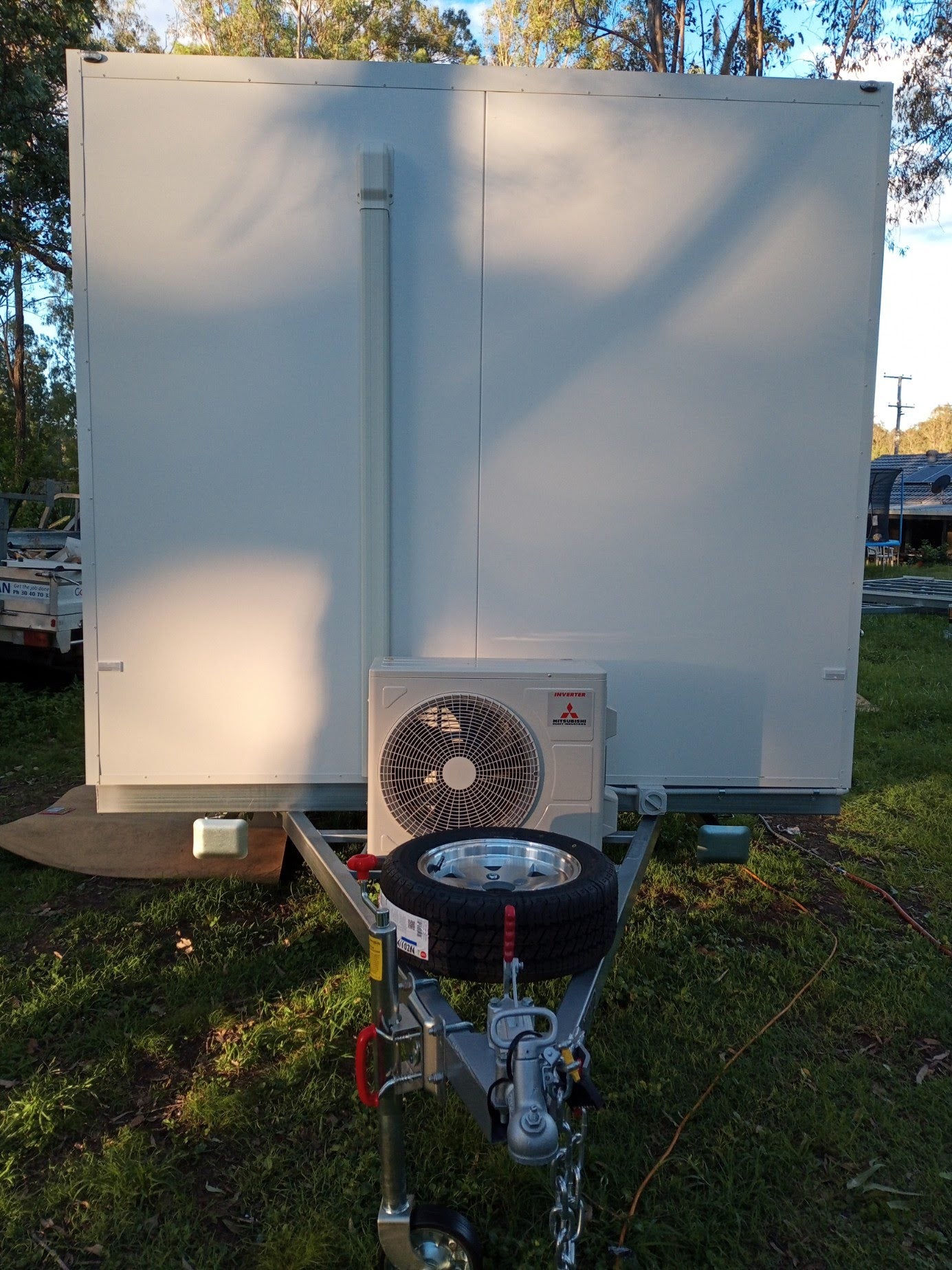

• Split-system reverse-cycle air conditioning
• Surfmist body colour
• Galvanised chassis with cold-galvanising treatment applied to welds
• White aluminium sliding door with matching white cover trims
• White aluminium sliding window with matching white cover trims
• Sliding security door with deadlock
• Security window screen
• Blackout roller blinds

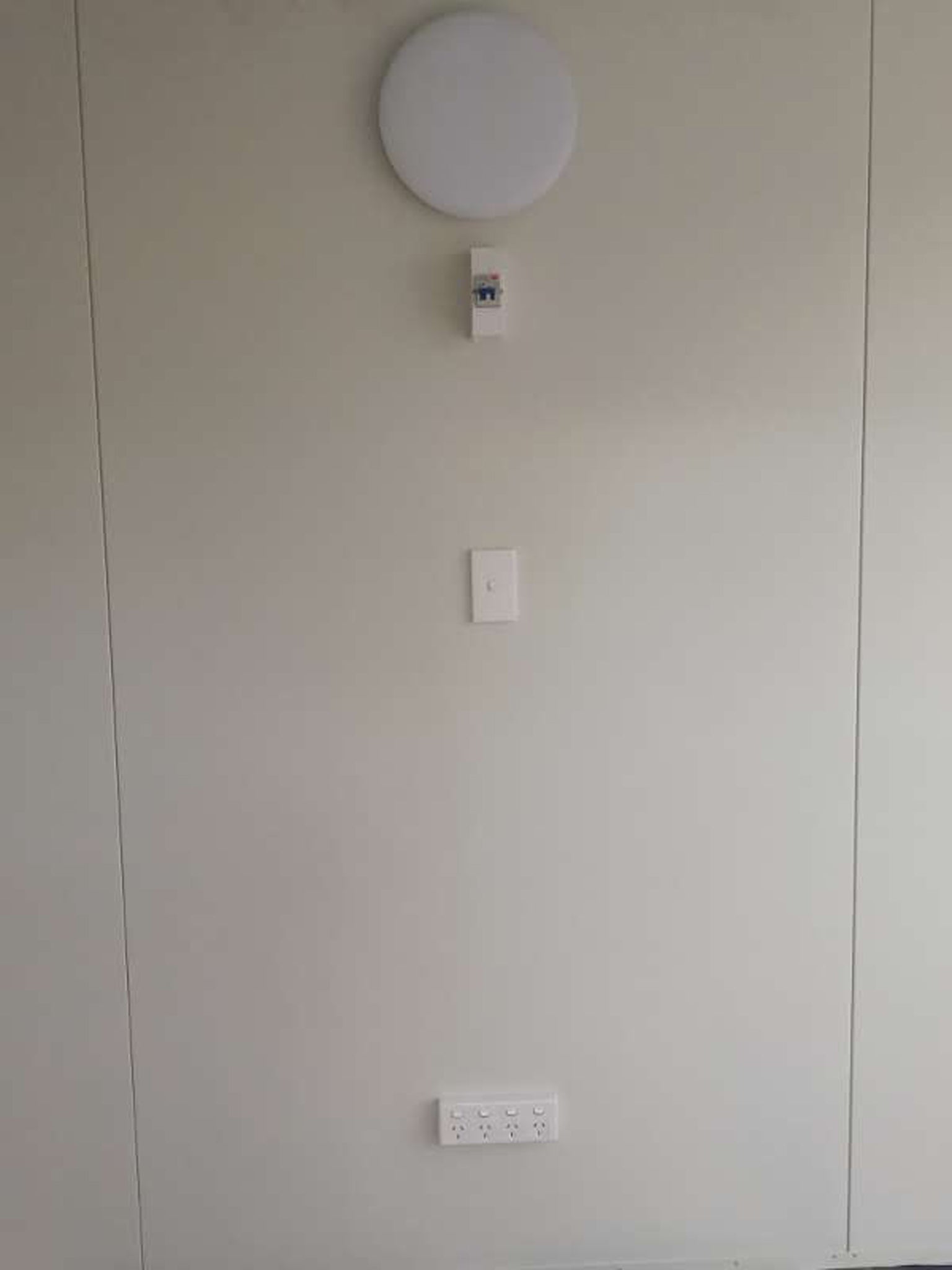

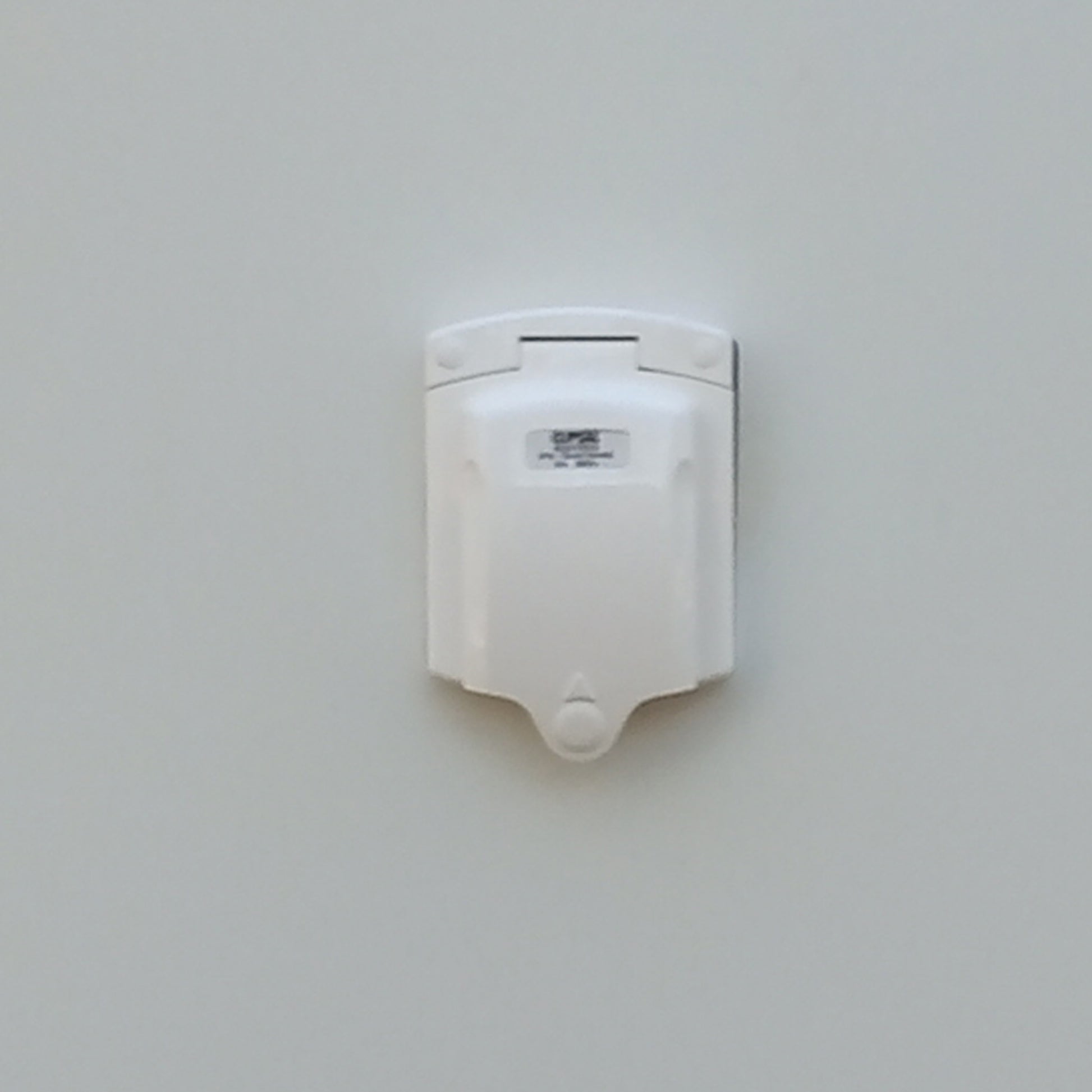

• Caravan-style 15-amp electrical inlet
• Double-pole RCD safety switch
• LED wall-mounted interior light
• Double-pole light switch
• Double-pole power point with four outlets
• Fully adjustable heavy-duty stabiliser legs
• Premium retractable double aluminium steps
• Spare tyre
• Electric drum brakes
• Low-profile 13-inch tyres with alloy wheels
• Axle and suspension rated to suit the trailer’s certified 1,600 kg ATM

Towing Requirements

The towing vehicle must have:

• A towing capacity of at least 1,600 kg, or greater if required for the trailer’s actual loaded mass
• A towbar and coupling with suitable ratings
• A compatible electric-brake controller
• A compatible trailer electrical connection

Always confirm the towing limits of the vehicle, towbar and coupling before towing. The trailer must not be loaded beyond its certified ATM, tyre capacities, axle capacity or other component ratings.
